Embedded-Software
Software embedded in microcontrollers of intelligent electronic control systems
Inquire now!

Using KI speeds up your time to market

speed up software engineering

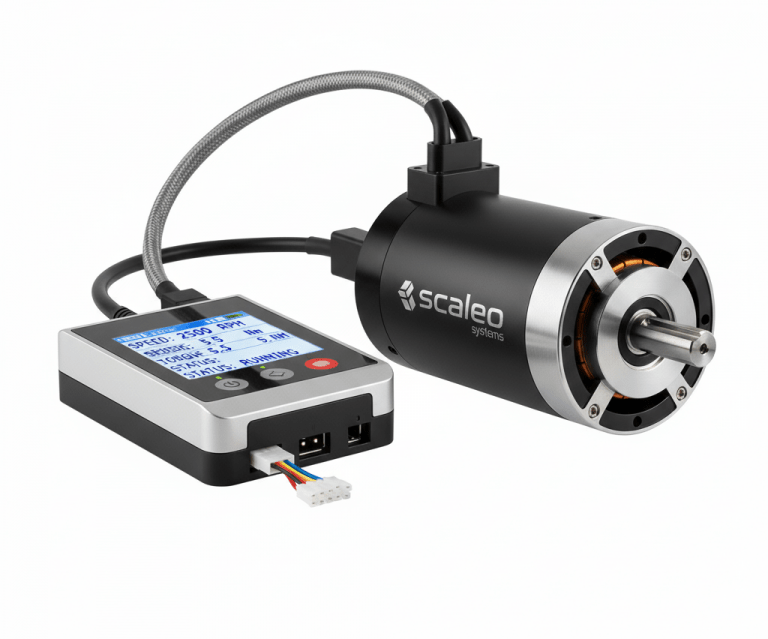

Embedded software for BLDC motors

scaleo develops embedded software for controlling BLDC motors. We ensure that the software units have a modular structure so that the software (we also like to refer to it as firmware) remains easy to expand and maintain.

1
display

2
status indicator

3
intelligent control

• position
• speed
• current

4
bus connection

• CANopen
• MODBUS
• RS232

5
control inputs

• analog 0-10V
• digital inputs

1 2 3 4 5 6 7 8 9 10 11
6
Power supply

12/24/48 volts

7
protections

8
commutation methods

• FOC field oriented commutation
• sinus commutation
• block commutation

9
BLDC drives

10
Stepper motors

11
servo motors

scaleo tools for developing and configuring motors

The ABZ Hall Transformer converts encoder signals into 3-phase Hall signals on the fly and also allows for adjustable alignment (advance angle) of the Hall edges! Ideal for use on engine test benches or in laboratory setups.

1
display

• touch inputs
• settings

2
status indicators

3
ABZ Hall

• converts ABZ signals into 3-phase Hall
• alignment adjustable

1 1 2 3 4 5 6
4
power supply

5V logic via USB

5
number of poles

adjustable via display

6
Hall signal output

• for controlling a 3-phase BLDC electronic system
• Can be switched off via control input

What our embedded software controls and monitors
communication

RS232, RS485, Modbus, CAN, USB, Ethernet
control of machines and systems

control of PLCs, direct control of test devices and I/O control boxes
display
visualisation

graphical representation of process actions, measured values, and test results
logging

Automated creation of test reports, test results, and process monitoring data
wireless communication

Xbee, Bluetooth, NFC, Wi-Fi to mobile devices such as cell phones and tablets

Interested?

Call us directly or send us an email!
